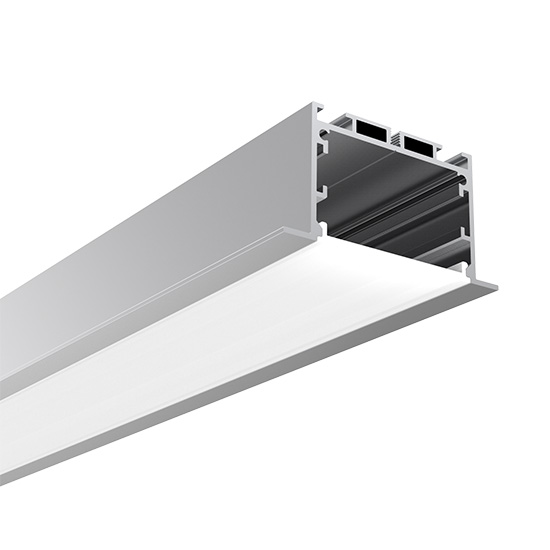

ALP017-R5

50x35mm Recessed LED Aluminum Profile Channel with PC Opal Diffuser, End Caps and Mounting Accessories, Connector, can do customized length and color.

DESCRIPTION:

v This Deep Recessed Ceiling LED Profile for LED Strip can be recess mounted into spaces where required, and has a diffused cover, which allows light to shine through whilst dispersing the view of individual diodes on the LED tape inside. This gives your LED tape installation a more ‘finished’ look.

SPECIFICATION APPLICATION INSTALLATION DOWNLOAD

Specification
Aluminum Profile	6065-T5
Diffuser	PC diffused cover / Black PC cover / PMMA matte cover/ PMMA semi-clear cover
Length	2000mm / 2500mm / 3000mm
Weight	0.712kg/m
Max LED Strip Width	24mm
Max Power	25W/m
Beam angle	100°
Finish	Silver / Black anodized , Powder coated white / black or other colors
Installation	Recessed
